Description
Features of Wacom Converter

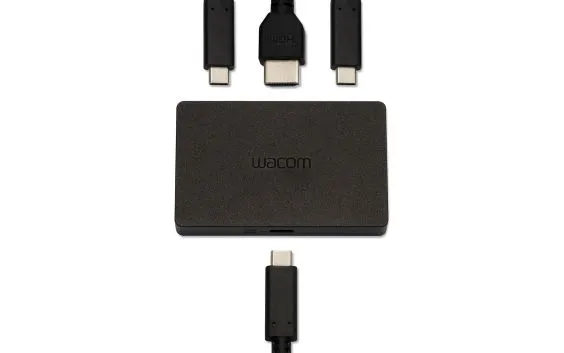

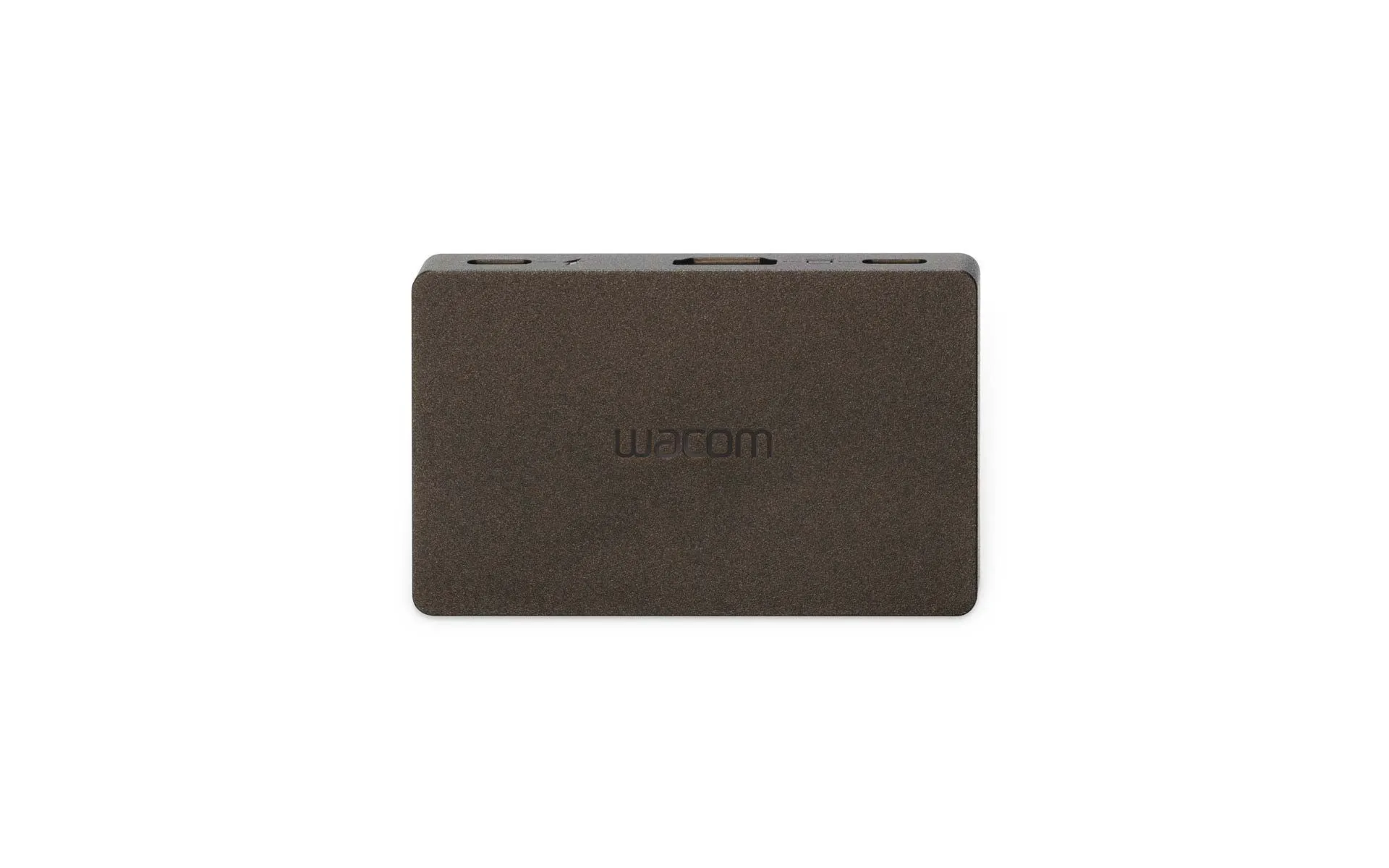

The Wacom Converter is an adapter that allows display tablets with USB Type-C connections supporting DisplayPort Alt Mode—such as the Wacom Movink and Wacom One pen displays—to connect via HDMI.
Basic Specifications of Wacom Converter
Product Name: Wacom Converter
Model Number: ACK45219Z
Interface:
-
Input: USB Type-C (USB 2.0) ×1, HDMI ×1
-
Output: USB Type-C (DisplayPort Alt Mode, USB 2.0, Power Delivery) ×1
Wireless Connection: Not applicable
Video Input Signal: HDMI
Video Output Signal: DisplayPort
Power Supply:
-
USB Type-C (Power Delivery 24W or higher)
-
AC Adapter (AC100–240V, 50/60Hz)
Input Voltage: Not applicable
Power Consumption: Not applicable
Product Color: Black
Storage Environment:
-
Temperature: -10 to 60°C
-
Humidity: 30–90% RH (no condensation)
Operating Environment:
-
Temperature: 5 to 40°C
-
Humidity: 30–80% RH (no condensation)
Compliance Standards: RoHS, VCCI
Dimensions (L×W×H): 80 × 50 × 12.6 mm
Weight: 0.06 kg
System Requirements:
A PC or Mac equipped with an HDMI port* and a USB-A or USB-C port
*Wacom Converter supports 3840×2160 (4K) @60Hz.
Note: Connection cables are not included.
Package Contents:
-
Wacom Converter
-
Quick Start Guide
-
Regulation Sheet
Compatible Products:
-
Wacom Movink (DTH135)
-
Wacom One 13 touch (DTH134)
-
Wacom One 12 (DTC121)
Optional Accessories (sold separately):
-
HDMI Cable (ACK4480602Z)
-
USB C to A Cable (ACK4480601Z)
-
AC Adapter (ACK44914A)
-
USB C to C Cable (ACK4490601Z, for Power Delivery connection to AC adapter)
